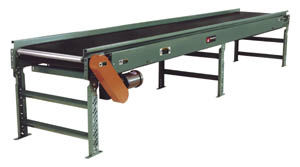

Belt conveyor

horizontaltroughtransport

BELTING: PVC-120 black. DRIVE PULLEY: 4" dia. with 1-3/16" dia. shaft or 8" dia. with 1-7/16" dia. shaft, both crowned and fully lagged. TAIL PULLEY: 4" dia., crowned, with 1-3/16" dia. shaft. END DRIVE: Allows one-direction (unit) operation; add optional center drive for reversible application. TAKE-UP: Screw type unit at tail pulley provides 12" belt take-up. BEARINGS: All pulley bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings. RETURN ROLLERS: 1.9" dia. x 16 ga. steel, model 196S, adjustable. BELT SPEED: 60 FPM, constant. BED: 7" deep x 12 ga. box type bed with bed pan braces (all widths) and with 2-1/2" deep x 12 ga. formed trough with formed flanges on sides to provide extra strength. FLOOR SUPPORTS: Optional MOTOR DRIVE: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor. ROLLER CHAIN: Drive pulley is driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up provided on motor base. SAFETY POP-OUT ROLLERS: Standard on both ends, 1.9" dia x 16 ga. steel roller, model 196S. ELECTRICAL CONTROLS: Optional
