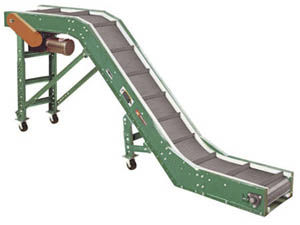

Hinged belt conveyor PPFslathorizontaltransport
Add to favorites
Compare this product
Characteristics
- Technology
- hinged belt, slat
- Form
- horizontal
- Function
- transport
- Speed
0.58 ft/s
(0.18 m/s)
Description
BELTING: Series 900 flat top gray polypropylene belt with 2" high streamline flights on 11.9" centers, FDA approved belting.
DRIVE SPROCKETS: 4.1" pitch dia. with 1.5" square bore.
TAIL SPROCKETS: 4.1" pitch dia. with 1.5" square bore.
END DRIVE: Allows one-direction (unit) operation.
TAKE-UP: Catenary type, underneath mounted.
BEARINGS: Drive shaft bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings.
BELT SPEED: 35 FPM, constant.
BED: 8" deep x 10 ga. enclosed box type construction with UHMW wearstrips mounted to 14 ga. steel belt return pan.
INCLINE: 30, 36 and 45 degree (specify).
PORTABLE SUPPORT: Adjustable floor supports with 4" dia. casters & bracing.
ROLLER CHAIN: No. 50 chain provided at drive shaft. Chain take-up provided on motor base.
MOTOR DRIVE: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor.
ELECTRICAL CONTROLS: Optional
