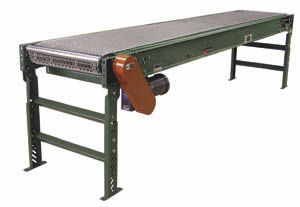

Wire mesh conveyor 700SBW

mesh belthorizontaltransport

BELTING: 1/2" x 1" x 11 ga. clinched edge, galvanized wire mesh belt. DRIVE SPROCKETS: 4" dia. sprocket with 1-3/16" dia. shaft or 8" dia. sprocket with 1-7/16" dia. shaft. TAIL SPROCKETS: 4" dia. sprocket with 1-3/16" dia. shaft. END DRIVE: One-direction unit operation. TAKE-UP: Screw type unit at tail end provides 12" belt take-up. RETURN ROLLERS: 1.9" dia. x 16ga. steel, model 196S, adjustable. BED: 7" x 1-1/2" x 10 ga. formed channel frame with UHMW wear strips. FLOOR SUPPORTS: Optional. BEARINGS: Drive and tail shaft bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings. BELT SPEED: 60 FPM, constant. MOTOR DRIVE: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor. ROLLER CHAIN: Drive shaft is driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives.
