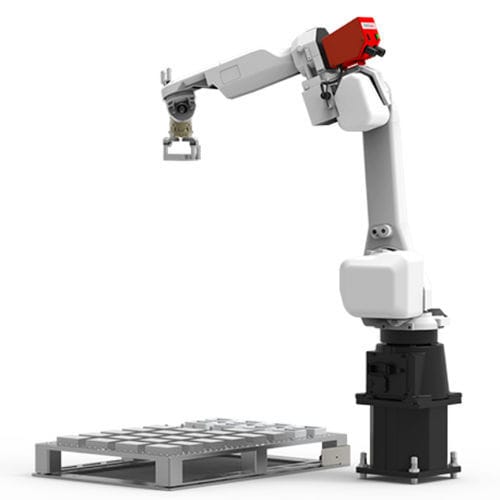

Robotic loading cell Pallet-Load Single

unloadingfor small parts

The most simple solution for automating your cnc machine Small runs and/or pieces 1 configurable pallet position 12 kg to 70 kg payload Ready for cnc automation? You’re taking the first step in the automation of your CNC machine by using Pallet-Load Single. This automation system is a very basic model, excelling in simplicity and ease of use. The system is available for the automation of turning machines or milling machines. Pallet-Load Single How it works You position the rough components on a configurable pallet, on which you can store both small and large workpieces. The robot then loads them into the machine, and places the finished pieces back onto the same pallet. When everything is ready, empty the pallet again and you can get started with the next batch! 01 3-coloured signal tower 02 Safety wall with light screen 03 Double gripper, for a rought and a finished workpiece 04 Fanuc industrial robot 05 Clamping force control on grippers 06 Control panel 07 Configurable pallet (full Europallet size) 08 Robot foot Flexible You decide how many pallet positions you need, and which pallet size best suits your components. Different options in terms of payload capacity allow the robot to handle workpieces of virtually any size. Fast set-up & changeover times As a result of our user-friendly interface you can automate your small runs in just a few minutes: the intuitive, graphic software guides you step by step when setting up your assignment.
