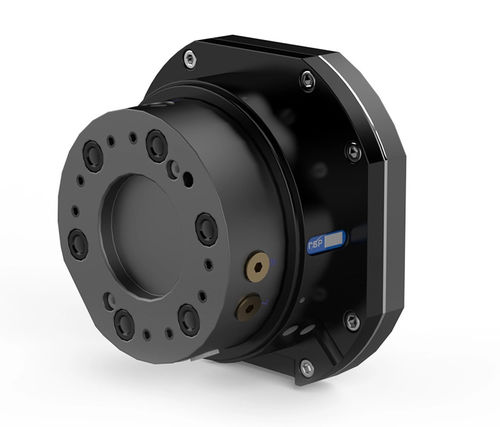

Air rotary union S100-4
4-passagefor robots

air rotary union
air rotary union
air rotary union
air rotary union
air rotary union
Add to favorites
Compare this product


Characteristics

Medium
for air
Number of passages
4-passage
Applications
for robots
Rotational speed

600 rpm
(3,769.91 rad.min-1)

Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145 psi)

Description

For robot payload 100 kg Allows continuous rotation of axis 6 Increased mobility Reduces hose package interference Maximizes hose package lifetime With RSP swivel S100, the axis 6 can rotate freely. Wear on the hose package decreases, while uptime and productivity is increased. If the swivels are used with our hose packages, axis 4 and 5 are also able to rotate unimpeded. The full working range of the robot can be utilized. RSP has developed our own patented slip ring solution for maximized reliability. Mechanical interface - ISO 9409-1-100-6-M10 Robot payload - 100 kg | 220 lb Working temperature - +10°C – +50°C | 50 °F – 120 °F Fz - ± 1000 N | ± 220 lb Mz - ± 1000 Nm | ± 8800 lbf·in Mx/My - ± 1000 Nm | ± 8800 lbf·in Weight - 4.1 kg | 9.04 lb Height - 105 mm | 4.13 in Air connection, inlet - G 1/8" (4x) Air connection, outlet - G 1/8" (4x) Air flow per channel - 600 l/min | 21.19 CFM Air quality - Oil-clean and waterless filtered air, with max 25µm particle content
