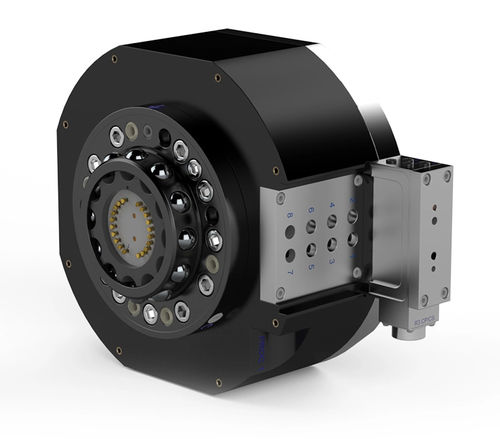

Air rotary union STC350-6E

8-passagefor robots

For robot payload 350 kg Allows continuous rotation of axis 6 Increased mobility Reduces hose package interference Maximizes hose package lifetime The RSP Swivel tool changer STC350 is a unique combination of a swivel and a tool changer. As the sole supplier, we offer integrated swivel- and tool changing functions, which combine the free rotation of axis 6 with compactness and minimal extension from the robot’s tool plate. RSP‘s swivel tool changers unite the best of two technologies and together with our own developed and patented slip ring solution it provides maximized reliability. Product category - Swivel tool changers Mechanical interface - ISO 9409-1-160-11-M12 Robot payload - 350 kg | 800 lb Working temperature - +10°C – +50°C | 50 °F – 120 °F Fz - ± 3500 N | ± 800 lb Mz - ± 3500 Nm | ± 31000 lbf·in Mx/My - ± 3500 Nm | ± 31000 lbf·in Weight - 23 kg | 50.7 lb Height - 142 mm | 5.59 in Air channels dedicated - 2 (TC open and TC close) Air channels available to tool - 6 Air flow per channel - 800 l/min | 28.28 CFM Air quality - Oil-clean and waterless filtered air, with max 25µm particle content Signals total - 14 Signals dedicated robot side - 5 (GND, 0 V, 24 V, TC coupled and TC uncoupled) Signals available to tool - 9 Rated current - 2 A Connection robot side - Souriau 23p Male
