Compact linear gantry module

Overview

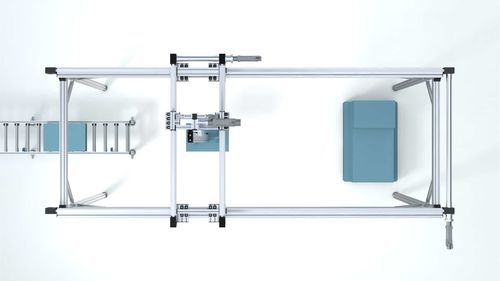

A 3-axis modular linear gantry from Robotunits for palletizing, depalletizing, stacking, sorting, singulation and inserting workpieces into CNC or processing machines. The gantry supports individually mounted gripper systems and is configurable to handle individual parts, smart load carriers and cardboard boxes. Units are engineered for project-specific adaptation.

Your benefits

• Modular, compact design with the linear unit acting as the supporting structure
• Typical lead time approx. 4 weeks enabled by the Modular Automation System
• Cost-effective solution based on 100% modular components

Technical characteristics / specifications

• Product type: 3-axis linear motion gantry
• Number of axes: 3
• Typical applications: palletizing, depalletizing, stacking, sorting, singulation, machine tending
• Handling capability: individual parts, smart load carriers, cardboard boxes
• Attachment options: supports individually mounted gripper systems
• Design: linear unit acts as supporting structure (compact modular layout)
• Delivery time (typical): approx. 4 weeks (Modular Automation System)
• Concept: Robotunits modular system for project-specific configuration
