Part laser ablation system LC/RR

Product overview
Portable fiber laser cleaners for fast, precise removal of rust, paint, oxides, coatings, oil, grease and dirt across industrial surfaces. Units are designed for on-site use (rolling or suitcase units), with intuitive controls, minimal consumables and reduced maintenance. Models range from compact MobiLase® suitcase units to high-power LC/RR systems.

Applications — Typical uses

• Rust & corrosion removal: strip rust and oxides from steel, aluminum and alloys without mechanical abrasion.
• Paint & coating removal: selective removal of paint, epoxy and powder coatings.
• Surface preparation: prepare welds, coating and bonding areas without solvents or blasting.
• Mold & tool cleaning: on-site precision cleaning of molds and tooling without disassembly.
• Oil, grease & general cleaning: rapid degreasing of machinery and parts with minimal secondary cleanup.
• Aerospace, automotive & defense maintenance: safe cleaning for sensitive, mission-critical components.
• Conservation & restoration: controlled cleaning for historic metals and artifacts.

Why laser cleaning?

• Selective: removes contaminants while preserving the substrate surface.
• Eco-friendly: no abrasives, no water, no chemicals and no secondary blasting waste.
• Efficient: high throughput and fewer process steps.
• Safe: standard anti-reflection protection, laser eyewear supplied and optional fume extraction.
• Operator-friendly: preset parameters, simple controls and rapid training.
• Cost-effective: low recurring costs and minimal consumables.

Features

• Dry process: no grinding, blasting or solvents required.
• Portable: rolling industrial units or suitcase models for on-site cleaning.
• Precise: short pulse and focused beam for surface-level removal.
• Simple setup: limited settings for repeatable results.
• Reliable: long operational life with minimal maintenance; 1-year warranty and local support.
• Configurable power: models available from 100 W up to 3000 W.

Portable lineup

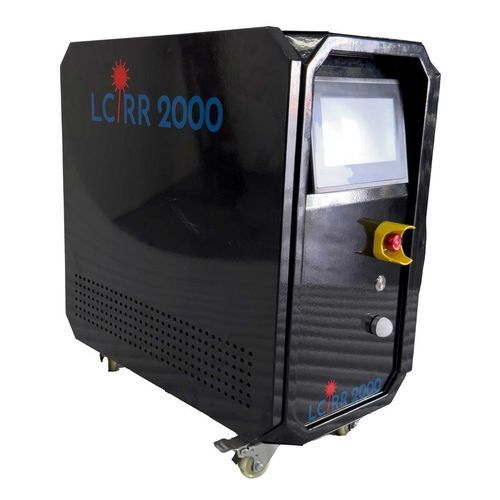

• LC/RR 2000 — Air-cooled, 2000 W (Made in USA): industrial portable model for high-productivity cleaning of large surfaces.
• LC/RR 1500 — Water-cooled, 1500 W (Made in USA): versatile model for aggressive stripping and fine cleaning in production environments.
• MobiLase® Laser Cleaner — Air-cooled, 100 W or 200 W suitcase unit: compact ~60 lb unit for precision cleaning of molds, tools and small parts.
• Higher-power options — up to 3000 W (Made in USA): systems for high-throughput tasks such as deep oxide or thick coating removal.

Technical specifications — key data

• Laser types: continuous-wave fiber (LC/RR) and pulsed fiber (MobiLase®).
• Power range: 100–3000 W depending on model.
• Cleaning widths: up to 300 mm (LC/RR); MobiLase® work area 100×100 mm (175×175 mm option).
• Unit weight: LC/RR ~120–176 lb; MobiLase® ~60 lb.
• Handheld applicator weight: ~2.4 lb (LC/RR); ~1.4 lb (MobiLase®).
• Central wavelength: ~1080 nm (LC/RR); 1064 nm (MobiLase®).
• Cable length: 10 m typical (LC/RR); 5 m (MobiLase®), options available.
• Power supply: models available from 110 V single-phase up to 380 V 3-phase depending on configuration.
• Cooling: air-cooled or water/PG30 coolant depending on model.
• Operating temperature: ~0–40 °C (MobiLase®) or ~5–40 °C (LC/RR models).
• Safety & warranty: anti-reflection protection standard; laser eyewear supplied; 1-year warranty.
