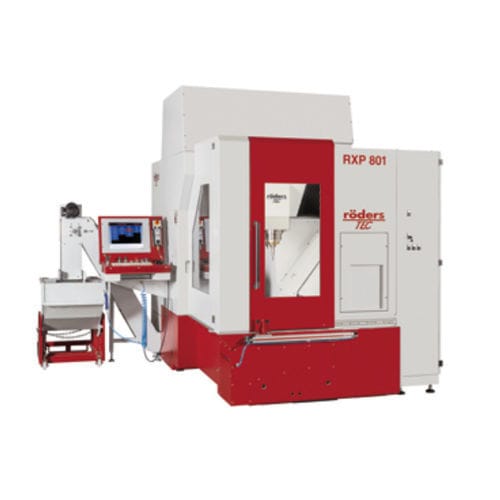

3-axis CNC machining center RXP801 verticalHSK-E50compact
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-E50
- Other characteristics
- compact
- X travel
800 mm
(31 in)- Y travel
635 mm
(25 in)- Z travel
400 mm
(16 in)- Rotational speed
30,000 rpm, 36,000 rpm, 42,000 rpm, 60,000 rpm, 90,000 rpm
(188,496 rad.min-1, 226,195 rad.min-1, 263,894 rad.min-1, 376,991 rad.min-1, 565,487 rad.min-1)- Power
15 kW
(20.39 hp)- Workpiece max height
615 mm
(24 in)- Work feed X-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39 in/s)- Work feed Y-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39 in/s)- Work feed Z-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39 in/s)- Table load capacity
800 kg
(1,764 lb)- Weight
8.4 t
(9.26 us ton)- Overall length
2,900 mm
(114.2 in)- Overall width
2,950 mm
(116.1 in)- Overall height
2,820 mm, 2,960 mm
(111 in, 116.5 in)
Description
Very compact machine with large machining area
Universally usable
