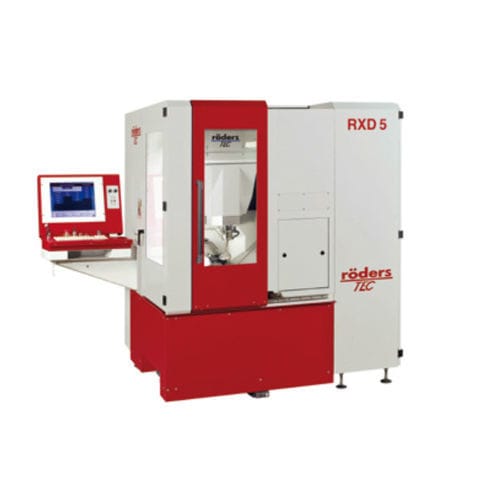

Dental CNC milling machine RXD series
5-axis4-axisvertical

dental CNC milling machine
dental CNC milling machine
dental CNC milling machine
dental CNC milling machine
dental CNC milling machine
dental CNC milling machine
dental CNC milling machine
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis, 4-axis
Spindle orientation
vertical
Spindle mount
HSK-E 25
Number of tool stations
40 tools, 12 tools
Applications
for automatic tool changers, dental
Other characteristics
high-speed, high-precision, with linear motor
Rotational speed

50,000 rpm
(314,159 rad.min-1)

Weight

3.2 t
(3.53 us ton)

Overall length

1,850 mm
(72.8 in)

Overall width

2,430 mm
(95.7 in)

Overall height

2,080 mm, 2,170 mm
(81.9 in, 85.4 in)

Description

With identical outer dimen­sions the High Speed Dental Milling Machines RXD4 and RXD5 differ only in the number of the integrated axes. 180° swivel axis as fourth axis 2 swivel positions for machining the upper and lower side (0° and 180°) Automatic clamping unit for fixing the Röders disc holder on the swivel axis One sided clamping of the disc in the Röders disc holder for optimum material utilization RXD5C for very large swivel angles up to 135°, RXD5 up to 115° Integrated highly dynamic rotary swivel unit for simul­ta­neous 5‑axis machining, positioned freely Equipped with wear-free direct drives Extremely stiff construction with counter bearing Automatic clamping unit for fixing the Röders disc holder One sided clamping of the disc in the Röders disc holder for optimum material utilization Modern linear motor technology Linear motor technology in all axes for highest precision and dynamics Wear-free and thereby high reliability Water cooled for high efficiency and long durability Laser measurement of the tools Highly precise tool measu­rement with the measuring laser Tool breakage detection and wear control also possible Protected against chips in the tool changer High precision Axis movement in smallest incre­ments possible for highest precision Internal resolution of the control smaller than 1 nanometer
