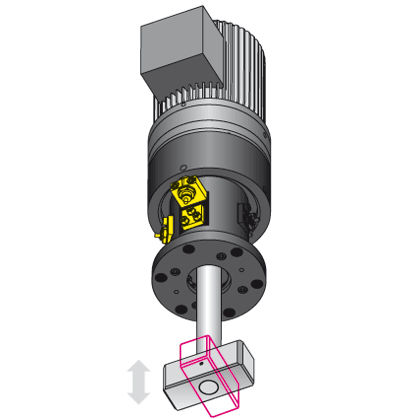

Electro-mechanical clamping element 5.2640

swingtraction

electro-mechanical, self-locking, with position monitoring The rotation of the motor is converted into a swivelling movement and a stroke of the tie rod by the flexspline gear and the lead screw. For clamping, the tie rod is swivelled by 90°, starting at the unclamping position, and pulled towards the clamping position. The clamping force and the clamping and unclamping positions are monitored by inductive proximity switches. The clamping force is maintained by self-locking.
