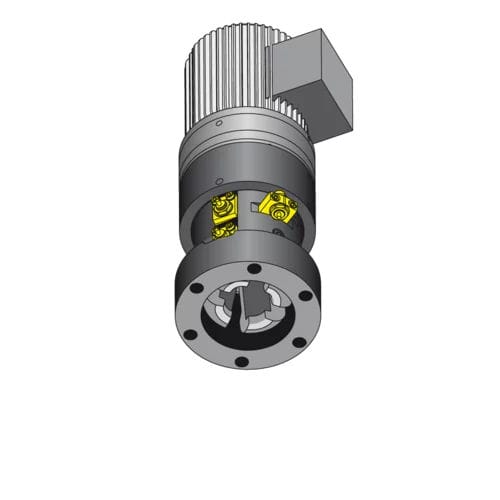

Tenon type clamping element 5.2620electro-mechanicalself-locking
Add to favorites
Compare this product
Characteristics
- Type
- electro-mechanical
- Other characteristics
- tenon type, self-locking
- Clamping force
Max.: 70 kN
Min.: 0 kN
Description
5.2620 Tenon-type clamping elements
5.2620 Tenon-type clamping elements
electro-mechanical, self-locking
with position monitoring
clamping forces 70, 120 and 160 kN
max. static force: 110 .. 300 kN
clamping speed: 3.8 .. 4.1 mm/s
motor voltage: 400 V / 50 Hz
motor rating: 0.55 .. 1.1 kW
clamping stroke: 5 mm
