Signal amplifier GNSS-AS-IP67
splitterGPS signal

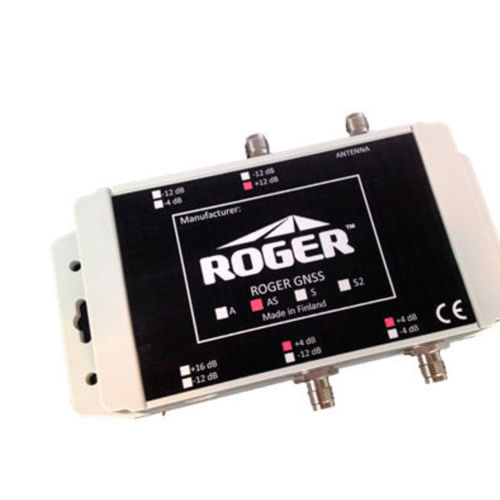

Signal amplifier - GNSS-AS-IP67 - Roger-GPS Oy - splitter / GPS signal
Signal amplifier - GNSS-AS-IP67 - Roger-GPS Oy - splitter / GPS signal
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
signal
Secondary function
splitter
Other characteristics
GPS signal
Frequency

Min.: 1,200 MHz

Max.: 1,700 MHz

Description

ROGER™ GNSS Amplifier & Splitter is a combined signal splitter and line amplifier that can transmit amplified signal to up to three separate repeater units. Amplifier has a gain of +16dB at the GPS L1/L2/GLONASS/GALILEO/BEIDOU frequency bands and it includes a filter to remove unwanted signals that may have entered the cable at some point. Splitter is a one to three signal splitter that can transmit signal to up to three separate GNSS (Global Navigation Satellite System) repeater units. Amplifier is powered through the output signal cable by the ROGER™ GNSS Repeater and also passes on DC power for the ROGER™ GNSS Splitter, an another GNSS line amplifier or GNSS receiving antenna. The splitter & amplifier is easy to use and permits a wide range of system configurations. Technical information Size: 220*148*39mm Weight: 430 g Operating Temperature: -40 - +75°C Connectors: TNC female Noise figure: <5 dB Impedance: 50Ω Gain: 2 x +4 dB and 1 x +12dB
