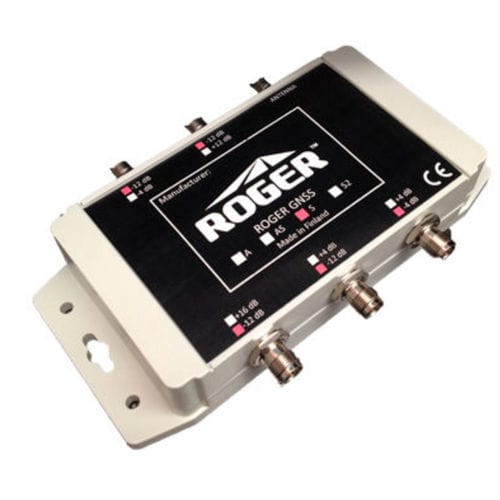

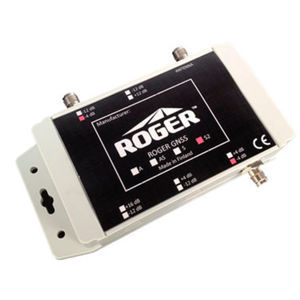

GPS signal splitter GNSS-S-IP67

With the ROGER™ GNSS Signal Splitter, is a signal splitter that is used to distribute GNSS signals to several Repeaters. Splitter works with GPS L1, GPS L2/GLONASS/GALILEO/BEIDOU frequency bands. Splitter has one to five splitter. DC power is passed from -4 dB port to antenna port connected to GNSS receiving outdoor antenna. ROGER™ GNSS Splitter is a one to five signal splitter with an output of -4 dB (1 port) and -12 dB (4 ports) that can transmit signal to up to five separate GNSS repeater units. The splitter is easy to use and permits a wide range of system configurations. Technical information Size: 220*148*39mm Weight: 465 g Operating Temperature: -25 - +55°C Connectors: TNC female input and 5 x TNC female output Frequency range: 1100-1700 MHz Noise figure: <5 dB Impedance: 50Ω Attenuation: -4 dB and 4 x -12 dB
