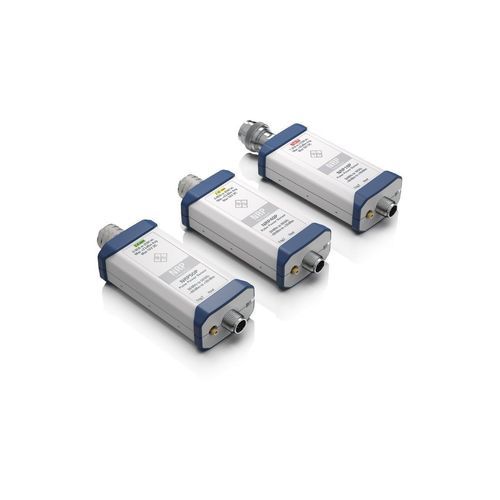

Microwave power sensor R&S®NRPxxP

peak

Overview
The R&S®NRPxxP pulse power sensors are wideband power sensors for measuring pulse characteristics and output power in development, production, installation and maintenance of radar systems and components. The sensors provide a maximum video bandwidth of 30 MHz and a rise/fall time < 13 ns, enabling measurement of pulse widths down to approx. 50 ns. Automatic analysis and high-resolution modes reduce manual steps and support repeatable measurements.

Key facts

• Maximum video bandwidth: 30 MHz
• High sampling capability: 80 Msample/s (envelope reconstruction)
• Rise/fall time: < 13 ns
• Minimum measurable pulse width: approx. 50 ns
• Automatic pulse analysis and statistical evaluation

High resolution mode

• Equivalent time sampling for repetitive signals with time resolution up to 100 ps
• Trace mode resolution: 12.5 ns for envelope reconstruction
• High sample density required for magnified signal sections

Automatic pulse analysis
Automatic pulse analysis determines key time and level parameters without manual marker placement, and adapts to pulse-shape changes.

• Time parameters: rise/fall time, start/stop time, pulse width, duty cycle, pulse period, pulse-off time
• Level parameters: pulse top, pulse base, peak, average, minimum, overshoot (positive and negative)

Statistical analysis
Statistical evaluation of amplitude distributions for noise-like signals to obtain peak envelope power, average power and peak-to-average ratio. CCDF, CDF or PDF measurements using 1,000,000 samples can be performed in less than 25 ms at full video bandwidth.

Trigger sender mode
When combined with an R&S®NRX base unit or R&S®NRP-Z5 sensor hub, an R&S®NRPxxP sensor can provide an internal trigger derived from the measured signal to synchronize other sensors.

Available models (selection)
Model | Order number | Frequency range | Level range | Connector type
R&S®NRP18P | 1444.1190.02 | 50 MHz - 18 GHz | -60 dBm to +20 dBm | N (m)
R&S®NRP40P | 1444.1290.02 | 50 MHz - 40 GHz | -60 dBm to +20 dBm | 2.92 mm (m)
R&S®NRP50P | 1444.1390.02 | 50 MHz - 50 GHz | -60 dBm to +20 dBm | 2.4 mm (m)

Features & benefits (summary)

• Maximum video bandwidth 30 MHz
• High sampling rate enabling 12.5 ns time resolution of reconstructed envelope
• Rise/fall time < 13 ns; minimum pulse width ~50 ns
• Automatic measurement of up to 15 pulse parameters
• Fast statistical measurements (CCDF/CDF/PDF) with 1e6 samples in < 25 ms
• Trigger sender mode for synchronized multi-sensor setups

Technical specifications

• Brand: Rohde & Schwarz
• Series / Model family: R&S®NRPxxP
• Maximum video bandwidth: 30 MHz
• Rise/fall time: < 13 ns
• Minimum measurable pulse width: approx. 50 ns
• Sampling rate (high capability): 80 Msample/s (envelope reconstruction, 12.5 ns)
• Equivalent time sampling (repetitive signals): up to 100 ps time resolution
• Trace mode resolution: 12.5 ns
• Automatic pulse analysis: up to 15 time and level parameters
• Statistical analysis: CCDF / CDF / PDF using 1,000,000 samples in < 25 ms at full VBW
• Trigger sender mode: supported with R&S®NRX base unit or R&S®NRP-Z5 sensor hub
• Level range (example models): -60 dBm to +20 dBm
• Frequency ranges (example models): 50 MHz–18 GHz / 50 MHz–40 GHz / 50 MHz–50 GHz
• Connector types (example models): N (m), 2.92 mm (m), 2.4 mm (m)
• Typical automatic pulse parameters measured: 15
