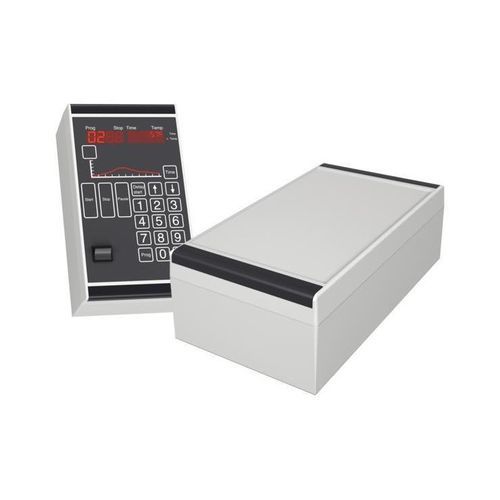

Surface-mounted electrical enclosure technoPLUS

plasticIP66outdoor

Product description
technoPLUS is a series of pole-mount enclosures in ASA (UV-stabilised) designed for outdoor electronics. The enclosures include an integrated recess for membrane keypads or front plates, clip-on design covers that conceal lid screws and mounting channels, and lid-retaining supports. An optional pole/mast attachment allows secure mounting with plastic or metal straps. Screw bosses inside permit fitting of PCBs, mounting plates and terminal rails. Compatible cable glands and accessories are available. technoPLUS enclosures can be supplied customised to specific installation requirements.

Top-features

• Enclosure material: ASA, UV-stabilised
• Surface colour: similar to RAL 7035
• Can be mounted with lid fitted via external screw channels
• Clip-on design covers: polypropylene (PP), RAL 7016
• Integrated lid support and lid-retaining straps
• Lid screws: stainless steel 1.4567, captive
• Integrated recess in lid for membrane keypad or front plate
• Flammability: UL-94 HB
• Enclosure seal: silicone moulded gasket (optional EMC gasket)

Product overview (variants)
Header: Article name | Type | Article number | Length (mm) | Width (mm) | Height (mm)
technoPLUS | TP 090 | 290.090.000 | 130 | 90 | 70
technoPLUS | TP 092 | 290.092.000 | 180 | 90 | 70
technoPLUS | TP 112 | 290.112.000 | 160 | 110 | 70
technoPLUS | TP 132 | 290.132.000 | 230 | 130 | 90
technoPLUS | TP 172 | 290.172.000 | 270 | 170 | 90

Technical data
Enclosure sizes: 5 standard sizes (see product overview)
Integrated recess in lid for membrane keypads or front plates
Integrated lid support made from polypropylene (PP)
Optional: mast/pole attachment for strap mounting
Enclosure: ASA, UV-stabilised, colour similar to RAL 7035
2° mould draft angle for ejection (internal circumference reduces by 2° towards base)
Clip-on design covers: polypropylene (PP), RAL 7016
Special materials and colours on request
Flammability: UL-94 HB
Fastening: separate external screw channels allow mounting with lid fitted
Internal mounting: screw bosses for PCBs, mounting plates; option for self-grooving screws
Ingress protection: IP66 standard (EN 60529); optional IP67 (EN 60529) and IP69K (ISO 20653)
Gasket: silicone moulded gasket; optional EMC gasket
Lid screws: stainless steel 1.4567, captive
Customising: full customising and ready-to-install assembly services available

Technical specifications

• Series / model: technoPLUS
• Material: ASA, UV-stabilised
• Surface: similar to RAL 7035; covers RAL 7016 (PP)
• Mounting: pole/mast attachment optional; can be mounted while lid is fitted
• Internal mounting: screw bosses in lid and base for PCBs, plates, terminal rails
• Sealing: silicone moulded gasket (EMC gasket optional)
• Ingress protection: IP66 standard; IP67 and IP69K optional
• Lid screws: stainless steel 1.4567, captive
• Flammability class: UL-94 HB
• Customisation: machining, labelling, assembly and special finishes on request
