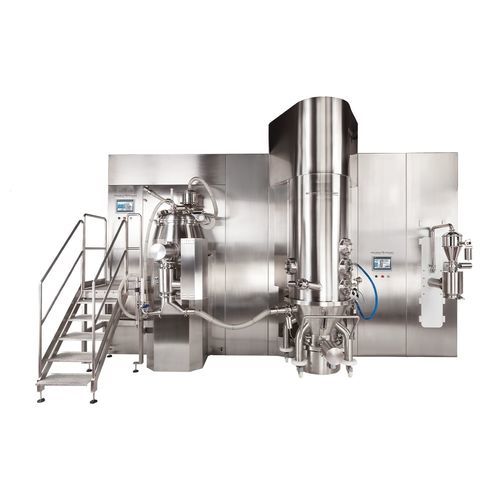

Pharmaceutical granulation line.
Wet granulation process integrated into a single frame.
Maximum versatility for process development
The granulation line integrates all options for the pharmaceutical wet granulation process into a single frame and control panel:
Mixing and granulation: high shear mixer granulator
Drying, granulation, coating: fluidised bed dryer
Maximum versatility for process - development
High shear mixer granulator
• - Standard equipment with capacities rangingfrom 25 L to 1,400
L,other dimensions on request
• - In-wall design for intégration into clean room
• - Manufactured in AISI316L
• - Mirror polished Ra<0.5
• - Non-contact top cover without supports in the container
• - Bottom impellerand side chopperto ensure intensive mixing in a very
short time period
• - Control of end point by time or by torque
• - PLC + HMI forthe control in manual and automatic mode, with recipe
editing
• - Automatic impeller lift during cleaning phase
• - Working platform adapted to the client’s space (Wurster system)
Calibration: conical and cylindrical calibrators
Fluidised bed dryer
Main features
• - From 30 L to 1.540 L,other dimensions on request
• - In-wall design concept
• - Built in AISI316L, mirror polished Ra < 0.5
• - PCL+ HMI in manualand automatic mode, with recipe editing
• - 12 bar pressure shock résistance
• - Innojet offers a wide range of services: installation “turnkey concept”
at the client facilities, start-up, qualification, training and production
support.
