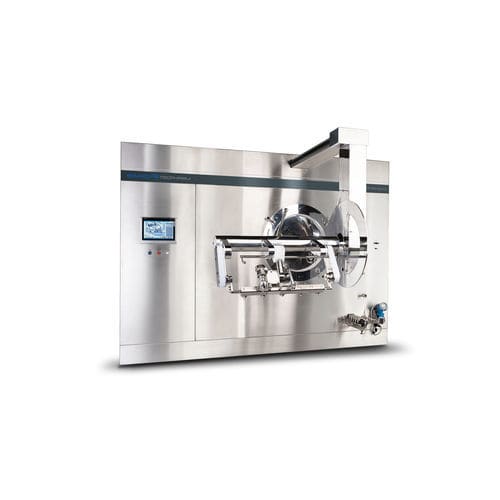

Film coating coating machine TPR OPT series

fully-automaticfor pharmaceutical applicationsfor tablets

Fully automatic perforated coating pan without mechanical adjustments for film coating of tablets and pellets suitable for aqueous and organic coatings. Performance: 7.5 L to 900 L Smarter Tablet Coating – true 10% to 100% Fully automatic without mechanical adjustments. Batch size range from 10% to 100% in a single drum Fully automatic parameter setting Automatic extension system for spray arm in relation to distance and angle Automatic adjustment of the spray arm by sonar depending on the level of charge Automatic regulation of air flow and path according to tablet or product load for a perfect coating performance Main Features: • - In-Wall design concept. • - Built in AISI 316L, with surfaces in contact with the product polished with roughness Ra <0.5. • - Intuitive HMI with Manual and Automatic modes. • - Détachable deflectors. • - Central transmission with direct coupling. • - Schlick® spray nozzles. • - AU speed adjustments by frequency inverter. • - Remote connection as standard feature. Key Features The OPTIMA Tablet Coater is a film coating machine based on perforated pan technology. 10% Batch Its high technology allows an automatic adjustment control of the flow, avoiding the damp, saving coating and optimizing the process time.
