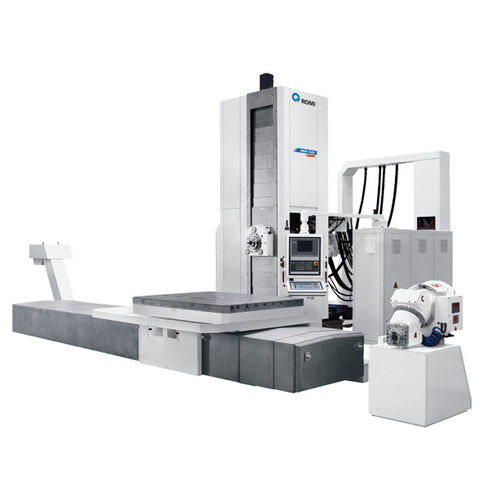

CNC boring machine ROMI Lazzati HBM 130T
horizontal4-axis

CNC boring machine
CNC boring machine
CNC boring machine
CNC boring machine
CNC boring machine
CNC boring machine
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Other characteristics
4-axis
X travel

4,000 mm (157 in)

Y travel

2,000 mm (79 in)

Z travel

1,800 mm (71 in)

Power

58 kW (78.85803 hp)

Description

The boring machine ROMI Lazzati HBM 130T, equipped with CNC SIMENS, shows high capacity for chip removal, flexibility, accuracy and productivity on milling, drilling and tapping of large size parts, such as those employed in sectors of: oil & gas, ethanol, naval, energy power generation and other from base industry. Equipped with Rotary table NC (axis b), it allows parts positioning in any angle, allowing for machining complex and interpolated parts. It can support parts of up to 12,000 kg and high machining loads, with excellent stability of the set. In order to keep heat stability and machining accuracy, the machine is equipped with thermo-stabilizer system, which spreads the heat generated by the bearing housings of the spindle.
