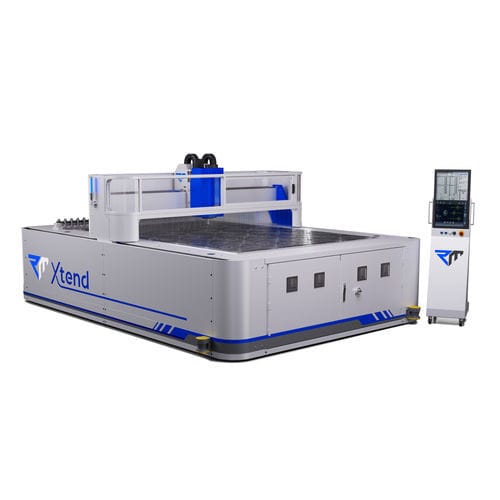

Large workpiece CNC milling machine XTEND

3-axisverticalfor non-ferrous metals

Xtend is the versatile CNC milling machine that is ideal for those seeking large-format plate machining and fast, accurate nesting, with very short tooling and part positioning times. With working areas up to 4000 x 2000 mm and high-speed milling and rapid handling, it is ideal for processing aluminum, nonferrous metals, composite fibers and plastics. Configurations and accessories to meetevery need Electrospindle available in two versions: - 8kW at 36,000 rpm, with HSK40 attachment, for high-speed machining and excellent finish levels for machining with even small-diameter tools. - 14 kW at 24.000 rpm, with HSK F63, for high removal milling and deep, precise passes with large tools. Tool change Xtend is equipped with an automatic tool changer rack with capacity for up to 50 positions, which maximizes productivity and reduces tooling time. Together with the tool magazine, there is a tool length measurement and tool breakage control system, which is essential for ensuring long unattended machining and very short set-up times. Cooling The minimal oil and/or air lubrication system, adjustable in delivery frequency and flow rate, ensures timely cooling of the contact surfaces, optimizing the tool life cycle. This solution does not require coolant disposal management or the use of collection tanks. Xtend is built on a base made of electro-welded steel tubulars. Its rigid structure and excellent axis dynamics guarantee and excellent performance in milling on plates of various materials and nesting operations. The axes are controlled by brushless motors with absolute encoders and racks that ensure smooth and precise movements.
