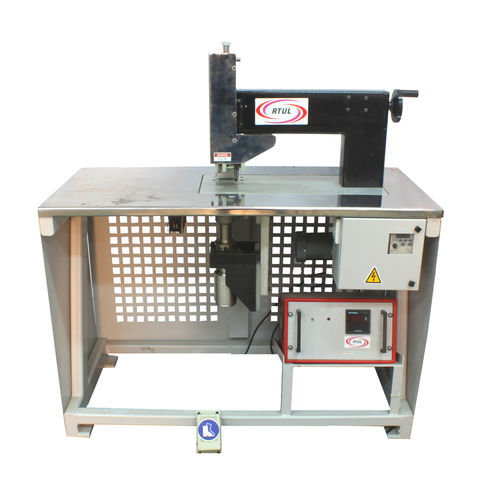

Plastic bags sealing machine USM series

fabricpaperultrasonic

Ultrasonic continuous sealers provide a big benefit over conventional stitching methods. The system can perform two manufacturing processes in one flow i.e (Cut & Seal), there is no wearing due to steel sonotrode and prevents the material from fraying. The Ultrasonic Sealing System is designed with a motor, roller, electronic control & working table for sealing of Fabrics, Plastic Films, Laminated paper, Non-Woven Fabrics, Filters, etc. It is a versatile Machine and the location of the horn and anvils enable flexibility and tight turns in sealing, This also provides an unobstructed view of the fabric in the processing area. Ultrasonic Generator - SG-40-36-1000W/ SG -22-1000W Ultrasonic Converter - 36KHz/SE 40/33 , 20KHz/SE 50/44 Horn - Titanium Working GSM - 50-140/ Upto 300 M S Roller anvil for Stitching Yes, 60 mm Dia Booster with ring - Yes (Titanium) Foot Switch 10 Amp/ 250 V Bottom Legs M12 x 80 mm length Weld area (Width in mm) 30 mm x 10 mm (max) Ultrasonic Converter - 35 KHz/SE 3512 Horn - Titanium Working GSM - Upto 200 Rotary motor for Sealing head Yes PLC + HMI (for system controls) Siemens made Foot Paddle 2 Nos Bottom Legs M12 x 80 mm length Weld area (Dia in mm) 6 mm (max) Proportional valve Festo made Protective garments Disposable hospital gowns Shoe Covers Face Masks Infants’ nursery garments Filters Bags Curtains Sails and web splicing Sealed edges and seams with no stitch holes prevent penetration of chemicals liquids Bloodborne pathogens or particulates Filter bags Health care articles Medical mattresses and pillows Needle felts Operations sheets Foils Bullet proof vests Blinds and awnings Pleated filter Shower curtains
