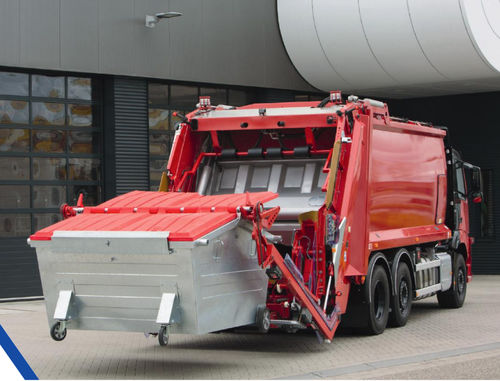

Bin lifter EUROMAX

Introducing the EuroMAX binlift, a superb integrated style bin lift system that offers a low entry height of 1050mm and is capable of handling a wide range of domestic and commercial containers. Additionally, the EuroMAX is configured with wide EN12574-1 Eurotainer arms and EN840-4 BG lift arms to allow it to handle a wide variety of large volume containers. The EuroMAX is easy to operate with minimal process steps required to lift and discharge containers, comes with spillage guards and a fast EN840 container discharge cycle. Cleverly, the EuroMAX keeps the lid and bin catcher operation cylinders external to the tailgate to prevent damage. The unique geometry employed assures a collision free operation for the body packing mechanism and lift system for all container sizes and designs. When mounted with a low profile underbody weighing frame and low platform Olympus body the EuroMAX helps create more tailgate volume and a superb low entry height for materials. Features Low entry 1050mm EN 840-1/2/3 EN12574-1 Eurotainer lift arms EN 840-4 BG lift arms Reinforced refuse plate
