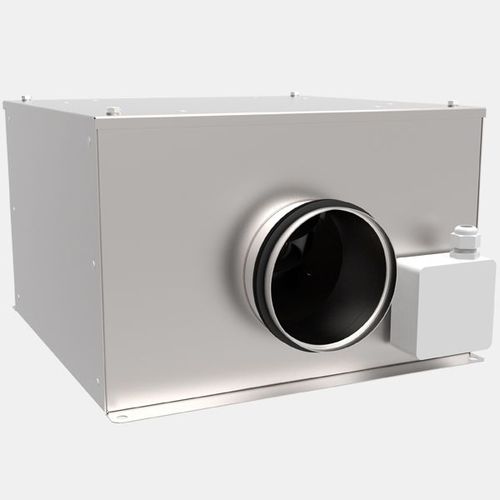

Floor-standing fan Z...R
ductcentrifugalventilation

floor-standing fan
floor-standing fan
floor-standing fan
Add to favorites
Compare this product


Characteristics

Installation
floor-standing, duct
Configuration
centrifugal
Function
ventilation
Material
plastic, aluminum, galvanized steel, steel
Other characteristics
high-pressure, low-noise, IP44, backward curved, high-volume, tube
Air flow

2,400 m³/h
(84,755.2 ft³/h)

Diameter

Max.: 400 mm
(15.748 in)

Min.: 125 mm
(4.921 in)

Description

• insulated casing • high volume and pressure performance • can be used in all mounting positions • easy cleaning and maintenance • speed is 100% infinitely variable using auto transformers or electronic control • very low noise Casing The casing is made of galvanised sheet steel. The 40 mm thick mineral fibre plates inserted in the REVOLUTION Series act as sound insulation. The cover can be simply screwed off, making the fan area easily accessible for cleaning and maintenance. The motor can be disassembled with impeller and spiral casing. Impellers External rotor motors are used in protection class IP44/54 with humidity protection, ball bearing-mounted and with built-in thermal contacts for motor protection. In the REVOLUTION version, the impeller is backward curved. The impellers are mounted directly on the rotors of the external rotor motors and are dynamically balanced on two levels with the rotor according to quality level G 2,5 / G 6,3 as per DIN ISO 21940-11. Electrical connection The electrical connection is made through a terminal box with protection class IP44. Assembly Rigid folded spiral-seam tubes (Spiro), flexible aluminium or plastic tubes with standardised diameter can be used. Zeroboxes can be used in all mounting positions. When used over several floors of a building, the local fire safety regulations must be observed.
