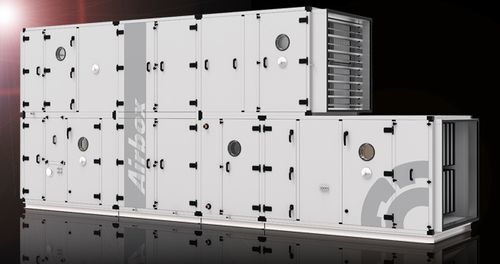

Large air volume air handling unit Airbox T60

The Airbox T60 devices have a thermally decoupled aluminium frame with gutters and corner connections made of fibreglass reinforced polyamide which are also thermally decoupled. Frame profiles and plastic corner connectors are sealed against each other using EPDM seals. The thermally decoupled casing panels are of double-skin construction with a 60 mm wall thickness. In the basic version, 1 mm thick galvanised steel sheet is used for the inside and outside sheets. Alternatively, the T60 casings are available with plastic coating (standard RAL 7035), in V2A 1.4301 or with aluminium panelling AlMg3. The rock wool used as thermal and acoustic insulation is non-flammable and is partly glued onto the double-skin panel. The panels are screwed on to the hollow frame profile from the outside. The connections between the casing components are configured so the insides are smooth. Lifting lugs can be attached due to the decoupled frame profile exclusively on the base frame under the housing. The T60 series is Eurovent certified. The suitability for the highest hygienic standards is demonstrated by the TÜV certification to DIN1946/T4 and VDI6022. Base frame The units up size 10Q can be provided with a folded base frame made from 3 mm thick galvanised steel sheet. From size 13R, the devices are always supplied with a base frame. Alternatively to the folded variants, welded and primed steel base frames as well as welded and galvanised steel base frames in a weather-proof design are available from size 16R. With a combination of supply and exhaust air units arranged one above the other; the upper level is also equipped with a base frame from size 13R.
