Monitoring vision system RS 73-47

for vehiclesindustrial

Overview:

This vehicle camera-monitor system kit provides a 7-inch LCD monitor together with camera and cabling required for installation in automotive applications. It is intended for use as a reversing/external camera monitor solution for commercial and private vehicles.

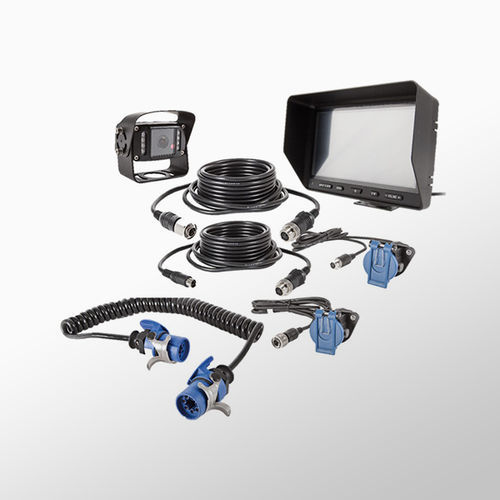

Included components:

• 7 inch LCD monitor (LCM 703T)
• 10 m camera cable
• ABS spiral cable set ADR VAR II - 1.5 m
• 20 m extension cable
• Camera RK 1405M

Characteristics / technical specifications:

• Commercial designation / model: RS 73-47
• Part number: SCM-1-001-64
• Monitor model: LCM 703T (7 inch LCD)
• Camera model: RK 1405M
• Included cabling: 10 m camera cable, 20 m extension cable, ABS spiral cable set ADR VAR II (1.5 m)
• Manufacturer: Rosho Automotive Solutions GmbH
• Application: camera-monitor system for vehicles / automotive use

Installation & compatibility:

• Kit includes the main cabling required for a typical vehicle installation
• Verify connector and mounting compatibility with the host vehicle
• Professional installation recommended for commercial vehicles and complex integrations
