Vehicle vision system RS 73-22

industrialcompactcamera-based

Overview
RS 73-22 is a packaged camera-monitor solution from Rosho Automotive Solutions composed of a monitor, camera and the necessary cabling and accessories. Designed for vehicle installations requiring a compact 7-inch display and extended cabling options.

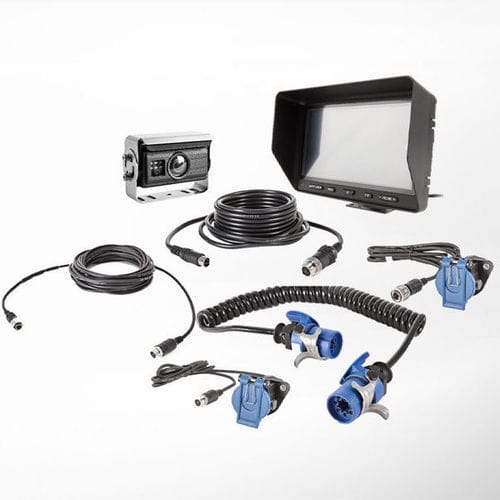

Contents included

• 7 inch LCD monitor (model LCM 703T)
• Camera unit (model RK 1100M)
• Camera cable (long) — 10 m
• ABS spiral cable set: ADR VAR II (1.5 m)
• Extension cable — 20 m

Technical specifications

• Part no.: SCM-1-001-59
• Monitor: 7 inch LCD, model LCM 703T
• Camera: model RK 1100M
• Camera cable length: 10 m
• ABS spiral cable set: ADR VAR II, length 1.5 m
• Extension cable length: 20 m
• Housing / cable material: ABS (spiral cable set)

Applications and installation

• Suitable for rear-view, side-view and cargo monitoring on commercial vehicles
• Flexible cabling for custom routing and remote camera placement
• Recommended installation by a qualified technician to ensure secure mounting and correct connections
