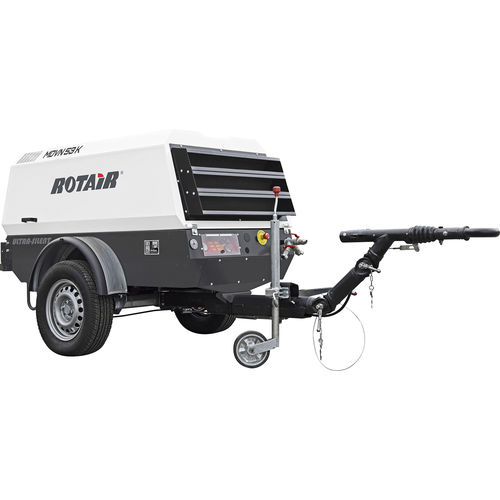

Screw compressor MDVN Series
airdiesel-poweredmobile

Screw compressor - MDVN Series - ROTAIR SPA - air / diesel-powered / mobile
Screw compressor - MDVN Series - ROTAIR SPA - air / diesel-powered / mobile
Screw compressor - MDVN Series - ROTAIR SPA - air / diesel-powered / mobile - image - 2
Screw compressor - MDVN Series - ROTAIR SPA - air / diesel-powered / mobile - image - 3
Screw compressor - MDVN Series - ROTAIR SPA - air / diesel-powered / mobile - image - 4
Screw compressor - MDVN Series - ROTAIR SPA - air / diesel-powered / mobile - image - 5
Screw compressor - MDVN Series - ROTAIR SPA - air / diesel-powered / mobile - image - 6
Add to favorites
Compare this product

Characteristics

Technology
screw
Type
air
Power source
diesel-powered
Portability
mobile
Lubrication
oil-lubricated
Tank volume

Min.: 30 l
(7.9 gal)

Max.: 140 l
(37 gal)

Pressure

Min.: 5.5 bar
(79.77 psi)

Max.: 12 bar
(174.05 psi)

Flow

Min.: 1,400 l/min
(369.84 us gal/min)

Max.: 3,600 l/min
(951.02 us gal/min)

Power

18.5 kW, 36.5 kW, 50.7 kW, 55.4 kW
(25.15 hp, 49.63 hp, 68.93 hp, 75.32 hp)

Length

Min.: 2,841 mm
(111.85 in)

Max.: 3,491 mm
(137.44 in)

Width

Min.: 1,400 mm
(55.12 in)

Max.: 1,580 mm
(62.2 in)

Height

Min.: 1,230 mm
(48.43 in)

Max.: 1,680 mm
(66.14 in)

Weight

Min.: 540 kg
(1,190.5 lb)

Max.: 1,240 kg
(2,733.7 lb)

Noise level

98 dB

Description

Complete portable compressors range (2000-2500-4600-5200-7800 lt/min). Each compressor type has also a specific model with integrated after-cooler and condensates filtration, for sandblasting, optic fibres laying and all those applications where cool, dry air is required. Wide range of standard pressures (7-10-12 bar), with possibility of higher pressures and Dual Pressure Compact, ergonomic, durable machines Lowest acoustic pressure levels as indicated in current legislation provisions Accessibility for maintenance Intelligent System – avoids starting load on engine and ensures low pressure shut down. “No Key “control panel, one button to start the machine. Anti-repetitiveness system on the engine start. Avoids starter motor issues and improves starter motor life. Centralized control panel for easy monitoring Low lifecycle cost Skid, axles of different types, with or without brakes, lights.
