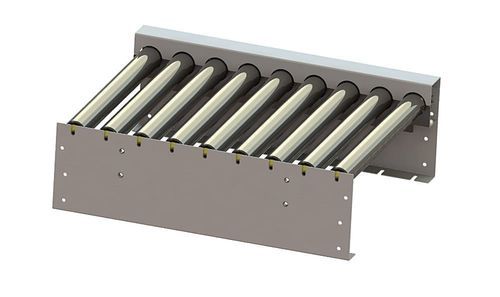

Roller conveyor

driven rollerstraighttransport

Product overview
The modular roller conveyor is designed for straight-line transport of packages and for transferring packages between robot cells and transfer stations. Roller segments are modular and can be combined to extend the transport route. Side guides are galvanized steel and the conveyor rests on level-adjustable feet. The system is driven roll-to-roll by SEW three-phase asynchronous motors and is engineered for transport speeds of 0.2–0.8 m/s.

Product features (summary)

• Modular roller segments for straight-line package transport
• Galvanized steel side guides
• Level-adjustable feet
• Roll-to-roll driven transport
• Driven by SEW three-phase asynchronous motors
• Designed transport speed: 0.2–0.8 m/s

Usage
The conveyor is intended for straight transport of packages. It can feed packages into robot cells, act as buffer and accumulation lines, and be configured as end pieces with centering. Segments can be combined to extend lines or create specific layouts while maintaining driven transport from roll to roll.

Application advantages

• Reliable feeding of packages to robot cells
• Buffering and accumulation for processing stations
• Supports double-decker configurations

Features and integration

• Flexible combinations of segments to adapt layout
• Robust galvanized-steel construction
• Integration into central robot control systems
• Compatible with stoppers and automatic guide rails

Control and peripherals
The conveyor is operated via the roTeg-Control software, developed in-house and customizable to customer requirements for coordinated processes. Peripherals such as pallet wrappers and labelers can be integrated, and communication with merchandise management systems enables batch tracking.

All from one hand
Development, production and commissioning are handled internally to deliver a cohesive solution with optimized functionality.

Technical specifications

• Transport speed: 0.2–0.8 m/s
• Drive: SEW three-phase asynchronous motors
• Drive principle: roll-to-roll driven
• Construction: modular roller segments
• Side guides: galvanized steel
• Feet: level-adjustable
• Possible configurations: multiple segments, end-piece with centering
• Application: straight transport of packages, buffer/accumulation line, feeding robot cells
• Capabilities: double-decker capable
• Integration: central robot control and communication with peripherals (labelers, pallet wrappers) and merchandise management systems for batch tracking
