Vibrating feeder motorizedbulk

vibrating feeder
vibrating feeder
Add to favorites
Compare this product
indicative price

Characteristics

Type
vibrating
Operating mode
motorized
Product applications
bulk

Description

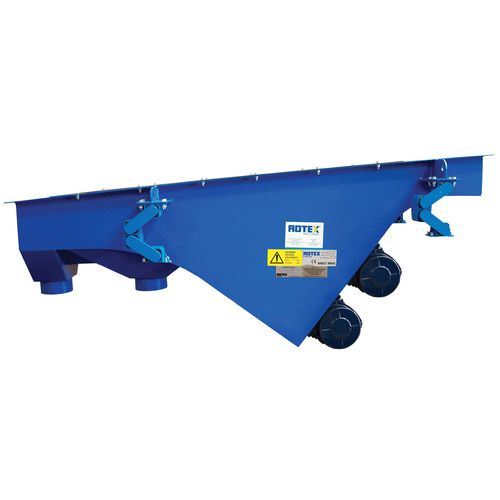

The cost-effective Direct Drive Feeder™ (and conveyor) meets all the process requirements of bulk handling industries and can be configured horizontally or inclined to fit your exact floor space. Drive mechanism The utilization of contra-rotating electromechanical motors imparts both an upward and forward stroke to the main feeder body. The angle of the motors determines the preference toward either lift or conveying. The stroke can be adjusted from zero to around 10 millimeters in most cases. Isolation mounts Standard barrel-type solid rubber mounts can be used with the addition of safety straps. Alternatively, Rosta-style mechanical mounts are generally preferred since these restrict the movement in the linear plane and minimize throw during the final stages of slowing down. For suspension design, isolation rods and rubber mounts are provided along with safety straps.
