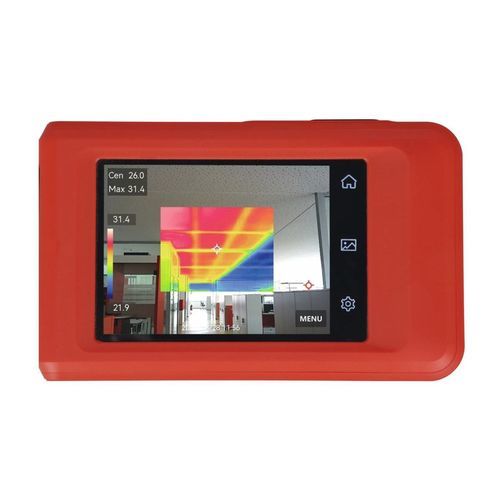

Infrared camera thermography system ROINFRATECT

for the building industry

Product overview
The ROINFRATECT thermal imaging camera provides high-resolution thermal and optical imaging with customizable viewing modes. It detects minimal temperature differences with a noise equivalent temperature difference (NETD) of < 40 mK and operates across a wide temperature range from -20°C to 400°C. The device delivers a smooth live image with no perceptible delay, stores images internally, and supports up to 4 hours of operation per battery charge, making it suitable for extended on-site inspections.

Benefits

• Facilitates fast inspections, straightforward maintenance and precise leak detection
• Early identification of potential fault sources
• Helps reduce downtime, saving time and operating costs
• Inspect heating systems in panels or heating pipes
• Detect heater slagging and water leaks
• Convert emitted radiation into actionable thermal images

Functions and features

• App support for Android and iOS
• WiFi transmitters and wireless data transfer
• Computer interfaces: USB and Bluetooth
• Image format: JPG; resolution: 2448 x 3264 px
• Display: 3.5" LCD (display resolution 640 x 480)
• Logging and audio recording supported
• Battery: 1 rechargeable Li‑Ion / Li‑Po cell; max runtime ~4 h (18V/8.0Ah)
• Protection class: IP54
• Storage: 16 GB internal / USB

Scope of delivery

• Thermal imaging camera
• Operating instructions

Variant

• No. 1500005132

Technical specifications

• Frequency: 25 Hz
• Operating temperature range: -20 – 400 °C
• NETD (sensitivity): < 40 mK
• Batteries: 1 piece, rechargeable (Li‑Ion / Li‑Po)
• Protection class: IP54
• Image format: JPG
• Image resolution: 2448 x 3264 px
• Display: LCD 3.5" (640 x 480)
• Touch display: No
• Operating ambient temperature: -10 – 50 °C
• Storage temperature: -20 – 60 °C
• Storage type: USB / internal memory (16 GB)
• Computer interface: USB, Bluetooth
• WiFi: Yes
• App compatible: Yes (Android, iOS)
• Logging: Yes
• Audio: Yes
• Max operating time per battery charge (18V/8.0Ah): 4 h
• Display size: 3.5"
• Storage capacity: 16 GB
• Display resolution: 640 x 480
