Hydraulic stacker truck 75225

for liftingsteel

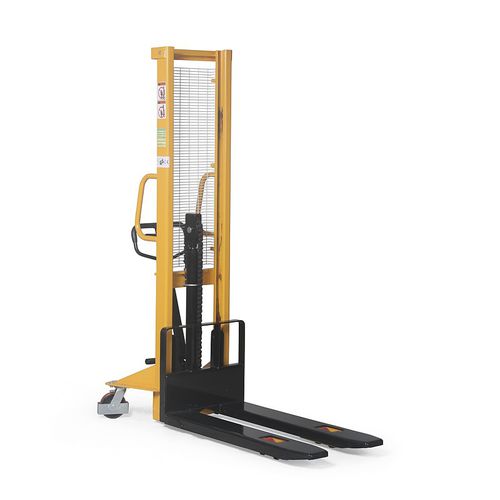

This hydraulic stacker is made of a solid welded steel construction and ideal for light work with pallets and containers. The lever has a triple function: lifting - neutral - lowering. The maximum load capacity is 1000 kilograms. The lowest position of the lift truck is 90 mm and the lift height is 1600 mm. The fork has a length of 1150 mm and a bearing width of 550 mm. The trolley consists of castors (150 x 40 mm) and tandem fork wheels (82 x 60 mm). Both wheels consist of polyurethane tires and the castors are equipped with a brake. The own weight is 210 kilograms.
