Paper core cutter

cartonfor plastics

General

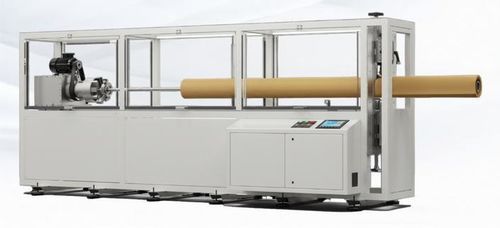

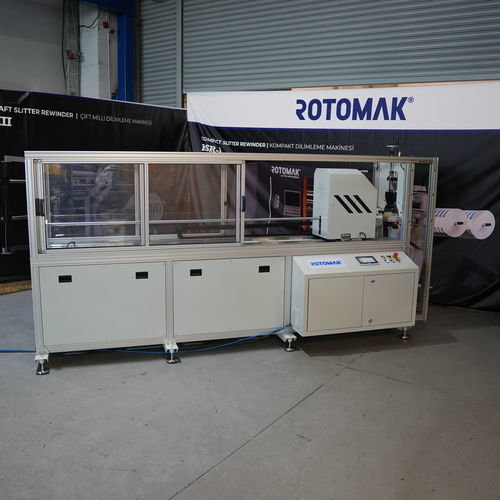

Our core cutting machine is designed to cut cardboard or plastic cores to the required widths with millimetre accuracy.

Product description
The core cutter features a servo-controlled blade feed and automatic core loading and stacking units to minimise operator intervention. It is suitable as an inline or stand-alone unit for flexible packaging, paper and textile converting lines.

Features

• Servo-controlled cutting unit for precise blade positioning
• Automatic core loading and feeding
• Programmable cutting width and sequences
• Quick blade change system
• Dust extraction / waste removal unit
• Touchscreen operator panel with recipe management
• High repeatability for continuous production

Applications

• Flexible packaging core processing
• Paper and cardboard core cutting
• Textile roll core cutting
• Custom-size core production

Technical specifications

• Brand: Rotomak
• Model: RSR-VI
• Product category: Core cutter / core cutting machine
• Max core length: 3000 mm
• Core diameter range: 3"-6"
• Max core thickness: 14 mm
• Minimum slice thickness: 10 mm
