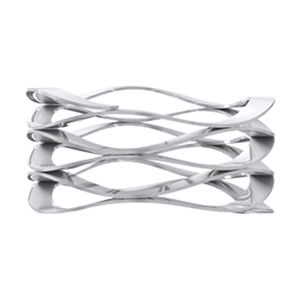

Compression spring WSM series
flat wirewavesteel

compression spring
compression spring
compression spring
compression spring
compression spring
compression spring
Add to favorites
Compare this product


Characteristics

Function
compression
Type
flat wire, wave
Material
steel
Outer diameter

Max.: 9.5 mm (0.4 in)

Min.: 7.9 mm (0.3 in)

Force

Max.: 36 N

Min.: 9 N

Description

The wave spring in this product series is made from coiled flat wire, with the waves giving a spring effect. In addition, the wave springs are also superior to coil springs, especially when it comes to certain applications that provide lower work heights with the same force. This provides for space saving and smaller assemblies that use less materials, lowering the production costs at the same time. Note that the rotor clip coils are pre-tempered flat wires, made from rolled and round wires as raw materials. The process known as on-edge-coiling is responsible for creating a circle with one or more turns, to any diameter and any number of specific designed waves.
