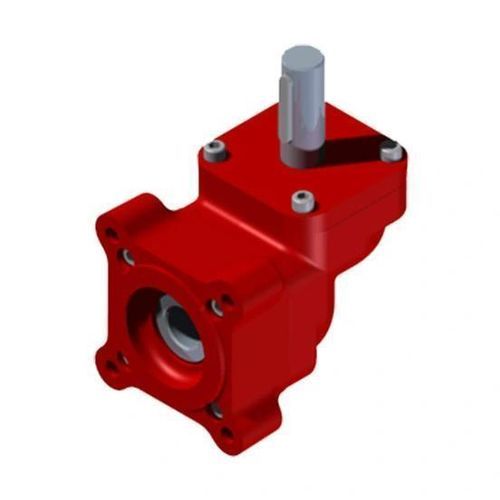

Bevel angle gearbox W100

right angle90°stainless steel

Overview
The W100 gearbox is a multi-turn 1:1 manual bevel gearbox designed to change the input shaft direction by 90° for underground applications. It is intended primarily for use on AB and manual duty IW series gearboxes. The W100 range includes two versions: the MW100 and the DMW100.

Key information

• Function: 90° shaft direction change
• Type: Multi-turn 1:1 manual bevel gearbox
• Primary application: integration with AB series and manual duty IW series gearboxes for underground installations

Features

• Input shaft and fasteners in stainless steel 316
• Cast iron housing

Versions

• MW100
• DMW100

Applications

• Designed for underground installations requiring a 90° change of input direction
• Used as auxiliary unit with AB and IW series manual duty gearboxes

Technical specifications

• Gearbox ratio: 1:1 (multi-turn)
• Bevel gearbox for 90° input shaft direction change
• Input shaft and fasteners: Stainless steel 316
• Housing: Cast iron
• Compatibility: AB series and IW series manual duty gearboxes
• Available versions: MW100, DMW100
