Polyethylene sewage treatment plant DEPURO PLUS+ series

compact

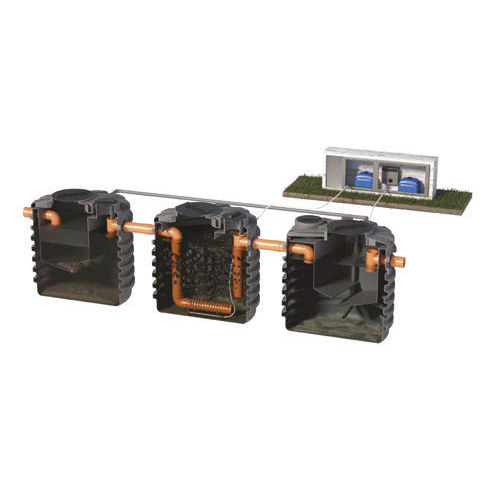

DEPURO PLUS* 1.SEDIMENTATION: sédimentation area for incoming so-lids. 2.DIGESTION: area into which the treated effluent flows for digestion. 3.SLUDGE: area in which the biological sludge responsi-ble for treatment of the effluent is formed. 4.FILTER MEDIA: plastic filter media with a large surface area (> 450 m2/m3) that act as a support on which the aérobic bacterial that treat the effluent can develop. 5.PIPE DIFFUSERS: micro-bubble air diffusers, included 6.OXYGENATION BLOWER: used to blow air into the treatment plant through the diffusers. Included. 7.FINAL SEDIMENTATION: stilling tank in which the surplus sludge sédiments and returns once again to the pri-mary sédimentation section. 8.SLUDGE RETURN: air-lift System to return the sludge that has settled in the primary sédimentation tank. 9.ELECTRIC PANEL: serving the blowers. Fitted with ti-mer and buzzer/visual alarm (included). 10.RECIRCULATION BLOWER: included. SPECIFICATIONS TECHNICAL CHARACTERISTICS: DEPURO PLUS is a fully biological treatment System for domestic effluent and the like. It consists of three tanks: a primary tank for séparation, digestion and sludge accumulation (primary sédimentation tank), an aerated adhered biomass treatment tank to oxidise the pollutants présent in the effluent and a final sédimentation tank for the séparation of the surplus sludge and the recirculation of it. AU the tanks are made of polyethylene (PE) manufactured using rotational moulding technology. USE: Primary and secondary treatment of domestic and assimilable sewage.
