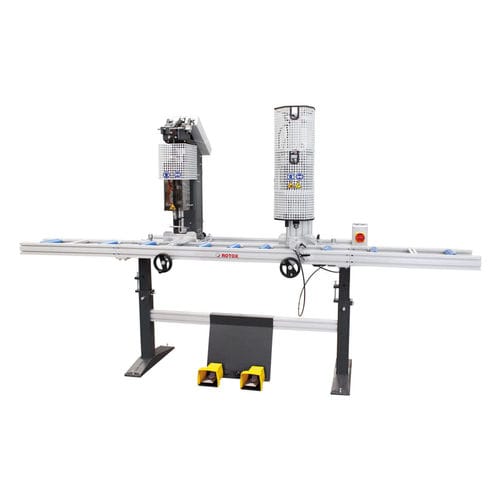

Automatic screwing machine ASB 1970for screw assemblypneumaticwith automatic feed
Add to favorites
Compare this product
Characteristics
- Operating mode
- automatic
- Applications
- for screw assembly
- Power supply
- pneumatic
- Other characteristics
- with automatic feed
Description
• Reinforcement screwing unit with automatic screw feed; operating via footswitch
• Drill unit with three-phase current motor and hydropneumatic feed, adjustable rapid
• stroke/drill stroke, drill chuck 13 mm, foot switch
• Pneumatic profile clamping system horizontal
• Including roller conveyor 2.500 x 200 mm
• more options
Technical data
Operating pressure (bar) : 6 - 7
Air consumption (l/min) : Screwing unit approx. 450
Drilling unit approx. 70
Power (kW) : Drilling unit 0,75
Clamping height (mm) : 30 - 140
Working height (mm) : approx. 900
Machine dimension L x D x H (mm) : 2.500 x 600 x 1.900
Weight (kg) : approx. 86
