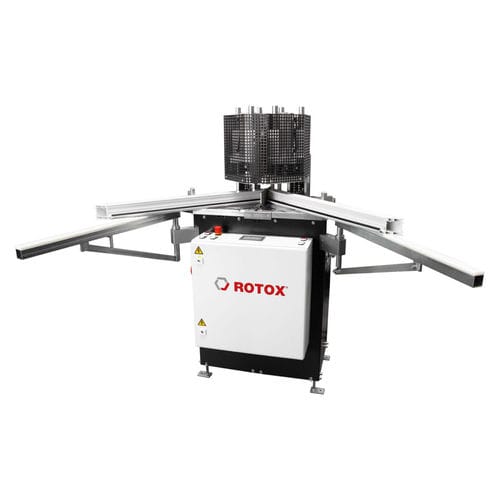

wedge welding machine / AC / PLC-controlled / for PVC
SEK 501 / SEK 503/513 series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
wedge welding machine wedge welding machine - SEK 501 / SEK 503/513 series


  • Technique:


  • Power source:


  • Operational mode:


  • Other characteristics:

    for PVC, for plastics, for profiles, single-head

  • Power:

    3,000 W


Exact welding of uPVC profiles which is accurate to dimension by a machine offering easy and safe operation.

Characteristic features:

•Weld bead restriction 2,0 mm
•Welding of acute and obtuse angles from 30° to 180°
•Two-hand safety switching
•Turret-stop for clamping height adjustment
•Safety switching for pressure
•Lock in position at 90° and 180°
•Modern PLC control
•Parallel thrust motion at both table tops

Optional extras:

•1 Set profil or frame support arms
•Weld seam restriction adjustable from 0,2 to 2 mm
•Knife heating at the top and bottom
•Center stop for small window elements
•System and apparatus for double butt welding
•Profil clamping on either the right or left

Technical data:

• Connected wattage (kW): max. approx. 3
• Voltage (V): 230
• Air pressure (bar): 6 - 7
• Air consumption per welding process (NL): approx. 20
• Clamping height (mm): 30 - 125 (optional 200)
• Heat plates (mm): 280 (optional 420)
• Machine dimensions L x D x H (mm): 1.000 x 900 x 1.500
• Weight (kg): approx. 250
• Workable material: uPVC hollow bar profiles
