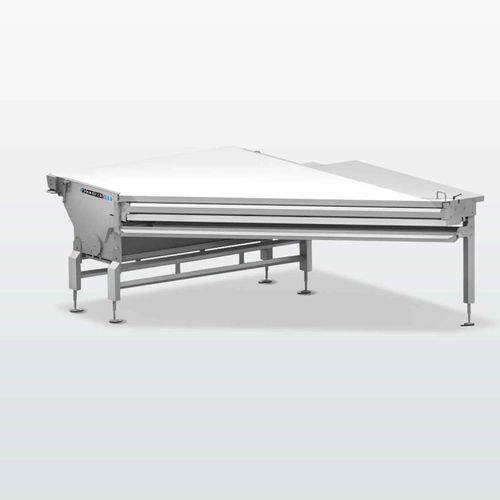

Belt conveyor

horizontalwith adjustable slopetransport

From 25° to 45° - other angles possibles Belt speed up to 60 m/min Low Total Cost of Ownership Wide range from small to large products Smart to spread and distribute the products Stainless steel hygienic design optimized for food industry You can customize it Load carrying capacity up to 15 kg/m2 The angular belt is Ideal for careful product handling, e.g., for spreading of products, transverse discharge of products, and transverse discharge and alignment in the product flow direction—standard belt widths between 250 mm and 1800 mm with a free choosable angle up to 45°. To fit your best possible needs, our innovative engineers developed the angular belt to be extremely short and with small radii of the belt edges to transport even the most petite goods. Reliably high standard of hygiene thanks to its open design and standardized stainless steel execution. Scope of application Angular conveyors are widely used to transport chocolate tablets and bars, pralines, fruit and cereal bars, biscuits, bakery products but also non-food products. They are able to adopt versatile functions such as spreading, compressing, cross feeding, isolating, flipping and aligning of products. They are frequently used in combination with other belt components. Quite often, an efficient product handling may be achieved using an angular conveyor within a smart layout.
