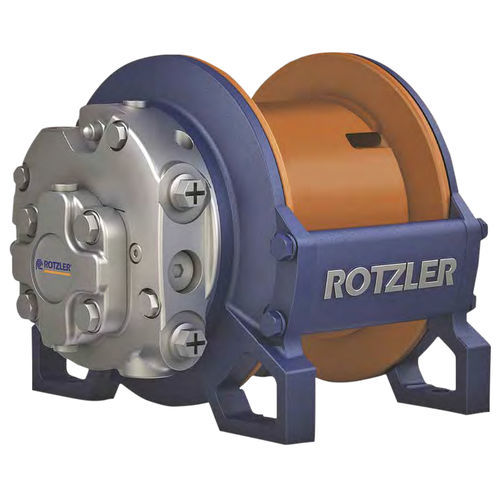

Hoisting winch TITANhydraulic motorwire ropefor cranes
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic motor
- Type
- wire rope
- Application
- hoisting
- Products applications
- for cranes, for drilling rigs, for marine applications
- Other characteristics
- compact, rotary drum, planetary gear
- Speed
Min.: 42 m/min
Max.: 63 m/min
- Cable diameter
8 mm, 10 mm, 13 mm, 14 mm
(0.31 in, 0.39 in, 0.51 in, 0.55 in)- Cable length
60 m, 62 m, 87 m, 90 m, 120 m
(196'10" , 203'04" , 285'05" , 295'03" , 393'08" )- Pressure
Min.: 155 bar
(2,248.08 psi)Max.: 295 bar
(4,278.61 psi)- Flow
Min.: 44 l/min
(11.62 us gal/min)Max.: 128 l/min
(33.81 us gal/min)- Weight
50 kg, 70 kg, 177 kg, 195 kg, 1,949 kg
(110.231 lb, 154.324 lb, 390.218 lb, 429.901 lb, 4,296.809 lb)
Description
Hoisting force range 12,5 bis 55,0 kN
Good reasons for ROTZLER TITAN hoisting winches
- Compact and robust design
- Superior reliability
- Highest safety standards
- Precise load positioning
- Highly configurable
- Improved performance
- Unique ROTZLER hydraulic motor
- Easy to maintain
Standard features of ROTZLER TITAN
- high quality, two-step planetary gearbox
- high-performance hydraulic motor
- overrunning clutch for precise load control and positioning
- sensitive brake with static and dynamic brake functions for gentle lowering of loads
- high-quality coating to protect against seawater
- contact surfaces made of corrosion-proof steel
- ventilation valve made of stainless steel
- graphite brake discs
ROTZLER TITAN - available options
- large drum
- grooved drum
- pressure roller
- rope end control
- load sensing system MCD
- sea water protection
- emergency brake release
- brake test valve
