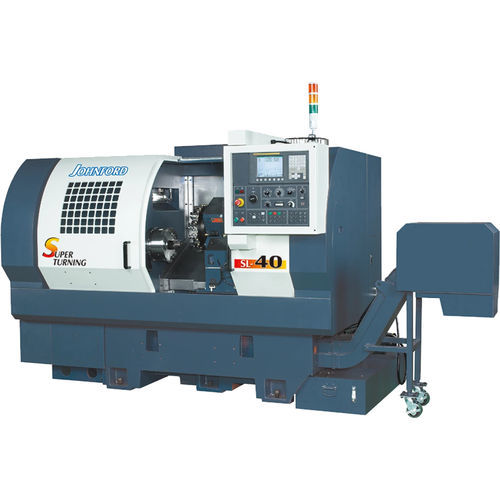

CNC turning center SL SERIES4-axisA2-6A2-8
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 4-axis
- Spindle mount
- A2-6, A2-8, A2-11
- Number of tool stations
- 12 tools
- Drive system
- servo-driven
- Performance
- high-performance, high-efficiency
- Other characteristics
- compact
- Associated function
- milling
- Diameter
380 mm, 450 mm, 540 mm
(14.96 in, 17.72 in, 21.26 in)- Spindle speed
2,800 rpm, 3,000 rpm, 3,500 rpm, 4,500 rpm
(17,592.919 rad.min-1, 18,849.556 rad.min-1, 21,991.149 rad.min-1, 28,274.334 rad.min-1)- Axe X
155 mm, 250 mm, 295 mm
(6 in, 10 in, 12 in)- Rapids on X
12 m/min, 15 m/min, 16 m/min
- Rapids on Z
15 m/min, 18 m/min, 20 m/min, 24 m/min
- Overall width
1,670 mm, 2,100 mm, 2,520 mm
(66 in, 83 in, 99 in)- Overall height
1,750 mm, 2,120 mm, 2,200 mm
(69 in, 83 in, 87 in)- Weight
Max.: 15,000 kg
(33,069 lb)Min.: 5,000 kg
(11,023 lb)
Description
Compact but rigid and versatile.
High performance cutting capabilities in turning, milling and even both together in one single set-up.
•Compact design with rigid box ways for utmost stability and cutting performance.
•Slant bed design with 30° and 45° for better chip removal capability
•Sub-spindle or counter-spindle is available
