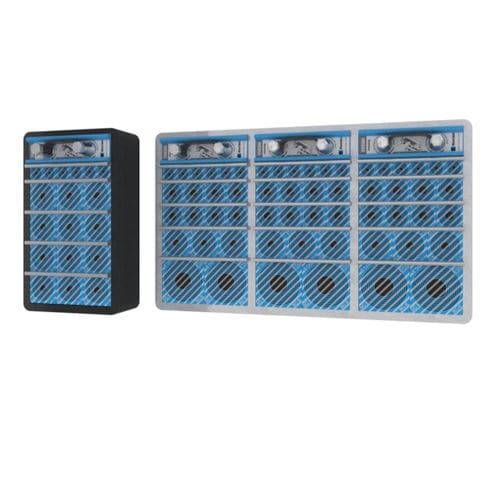

Frame transit system Roxtec S BG™

weldingmetalmultiple

Transit for bonding and grounding, for welding to the structure. The Roxtec S BG™ is a transit for sealing, bonding and grounding of multiple armored or metal-clad cables and pipes. It is available in different materials and with a single or various combinations of openings. The transit frame is produced in 10mm thick metal and is attached to the structure by welding. The Roxtec BG™ sealing modules are adaptable to cables and pipes of different sizes, and can be used to build in spare capacity in the transit. Roxtec EC (electrical continuity) test sticks are available to help indicate the electrical performance of the transit installation. Easy to maintain and inspect Provides built-in spare capacity Certificates are continuously added, renewed and replaced, please visit regularly to ensure compliance. Fire A-CLASS according to IMO 2010 FTP Code H-CLASS according to IMO 2010 FTP Code + HC fire load curve Tightness Gas: 2.5 bar (catastrophic) Water: 4 bar (catastrophic) IP 66/67 according to IEC 60529 Supports Bonding and grounding
