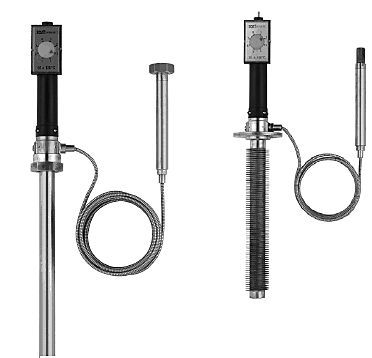

Thermostat unit for temperature measuring consist
of temperature sensor, set point adjuster, capillary
tube and working piston to the control of the valves
TR7100,TR 7200, TR 7300.
• Bulb sensor suitable for installation in pipe lines, heat
exchangers, boilers, tanks etc.
• Spiral sensor suitable for installation in air heaters,
air ducts, drying cabinets etc.
• Set point adjustment on the sensor or separate
• Set points from 0°C ...200°C
• optionally with thermowell made of brass/s.s.
• series with excess temperature safety device
