event recorder / alarm
9000TS

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

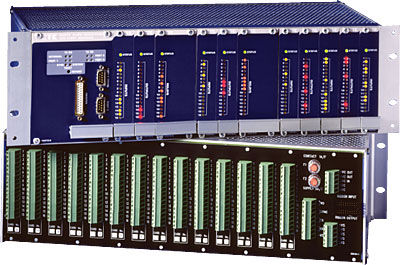

event recorder event recorder - 9000TS
{{requestButtons}}

Characteristics

  • Type:

    event

  • Applications:

    alarm

Description

The 9000TS is built on a rugged hardware platform suitable for the most severe of industrial environments found in the power and process industries. This unit will provide true time-stamping of event occurrence to a resolution of 1ms. Using the synchronisation input this time can also be related to real time.

Combined with the integrated alarm annunciator features it is possible to build a system that will capture, record and display events and alarms both for immediate action on the plant and for later analysis to find the prime cause of the failure.

The 9000TS is fully programmable using the Windows® Configuration tool supplied and is equipped with serial communication ports for connection to remote systems and to Alarm Management Software

The system is sold with various different display and output options to suit the particular system and application.

Key Features

Expandable up to 4000 inputs
1ms time-stamping of events across a the system
Up to 15,000 events stored locally on distributed non-volatile memory
Auto-shelving facility to avoid nuisance alarms
Can be supplied integrated into 19” rack systems or floor standing cabinets
