Platform metal lifting and turning device RUD TECDOS TM

with platformportablerotating

Overview

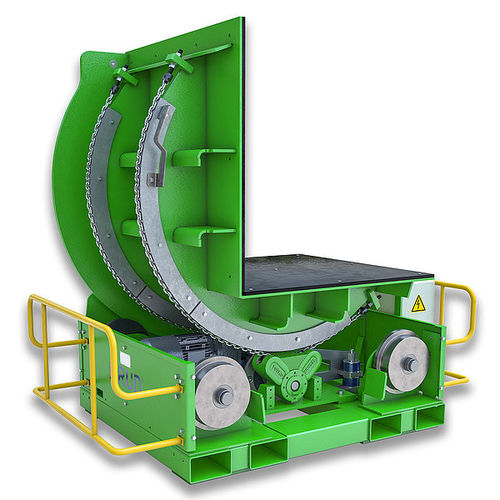

The RUD TECDOS TM turning device turns, rotates and tilts injection moulding tools, punching tools and forming tools weighing up to 64 tons (141,100 lbs). The compact, mobile unit does not require floor anchoring and can be moved by forklift. Remote control operation enables fast, safe and efficient handling of heavy tools in production and maintenance environments.

Key functions and operation
The TECDOS TM (tool turner / turning traverse / turning table) performs turning, rotating and tilting movements. It is remote‑controlled and designed for ergonomic use by a single operator, enabling quick repositioning of tools and reduced manual handling.

Construction and components / Accessories

• Platforms: bespoke platforms available on request to match tool geometry.
• Contact protection (optional): protective plate (yellow/black) to prevent operator access to the danger zone.
• Guard bracket (optional): hoop‑type bracket providing distance protection for front and rear zones.

Your advantages at a glance

• Tool‑protecting turning device for the injection moulding industry.
• Improves operator and tool safety during handling.
• Ergonomic mould handling by a single operator.
• Reduces time and costs when turning moulds and dies.
• Mobile design: no permanent anchoring required.
• Robust, flexible and maintenance‑friendly construction.
• Option to extend warranty.

Supports / Options
Multiple supports and plate options are available, including standard supports, supports with recess, PE overlay, T‑slotted plates, individual drilling, coil/hoses reel holder, support strips, table tops with recess, centering aids and support brackets with centering aids.

Technical data table (excerpt)
Type | Table surface (inch) | Table top height (inch) | Load capacity (lbs) | Weight (lbs)
TM 08/10-5 | 31.5 x 39.4 | 21.3 | 11,000 | 1,323
TM 08/13-10 | 31.5 x 51.2 | 23.4 | 22,000 | 2,315
TM 13/13-10 | 51.2 x 51.2 | 23.4 | 22,000 | 2,315
TM 15/18-16 | 59.1 x 70.9 | 34.8 | 35,200 | 8,159
TM 20/20-20 | 78.7 x 78.7 | 34.8 | 44,100 | 8,820
TM 20/23-25 | 78.7 x 90.5 | 45.9 | 55,100 | 17,640
TM 25/25-32 | 98.4 x 98.4 | 45.9 | 70,500 | 17,640
TM 25/25-40 | 98.4 x 98.4 | 45.9 | 88,200 | 17,640
TM 25/30-64 | 98.4 x 118.1 | 61.0 | 141,100 | 30,205

Characteristics / technical specifications

• Series/model: RUD TECDOS TM
• Remote‑controlled turning, rotating and tilting device for moulds, dies and forming tools
• Mobile design: no floor anchoring required; transportable by forklift
• Load capacity range by model: from 11,000 lbs up to 141,100 lbs (varies by model)
• Table surfaces and heights vary by model (see technical data table)
• Optional protective and functional accessories: bespoke platforms, contact protection plate, guard brackets, various support plates and centering aids
• Designed for single‑operator ergonomic handling and improved safety
