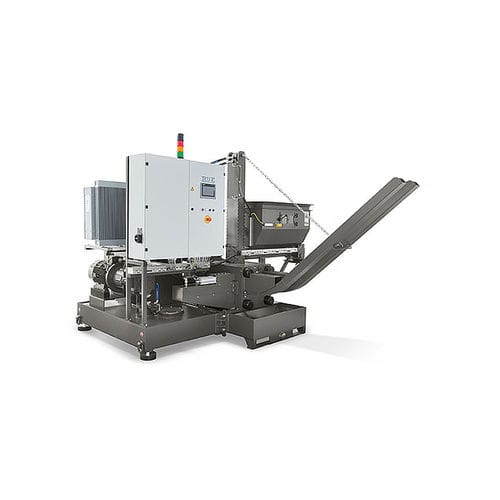

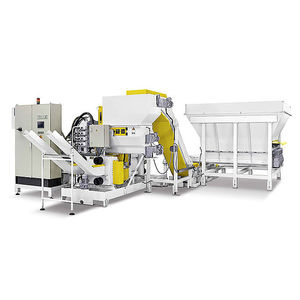

Metal chip briquette press RUF 11-22

automatic

VARIOUS DIFFERENT BRIQUETTE SOLUTIONS FOR METAL CHIPS For medium to large quantities of metal chips Short amortisation period Recovery of cooling lubricants Low melting loss and higher smelting yield Fully automatic 24h operation possible Long service life & low maintenance requirements DE-WATERING, DE-OILING & BRIQUETTING IN ONE If medium to large quantities of metal chips are produced through metal processing, the best solution for briquetting is to use our RUF 11-22 series metal presses which give you the opportunity to earn additional revenue. Added to this is the recovery of expensive cooling lubricants, which are squeezed out of the damp metal chips and can be reused. RUF offers individually-tailored briquetting solutions for various different metallic residues and adapts their systems precisely in line with specific customer requirements. Max. throughput rate (kg/h) Aluminium - 130-700 Max. throughput rate (kg/h) Brass, bronze, cooper - 150-1.150 Max. throughput rate (kg/h) Magnesium - 60-155 Max. throughput rate (kg/h) Steel & Castings - 200-850 Max. throughput rate (kg/h) Titan - 140-550 Power (kW) - 11, 15, 22 spec. Pressure, max. (kg/cm²) - 1.700 - 5.000 briquette formats (mm) - 150x60, 150x75, 150x120, Ø60, Ø70, Ø80, Ø100 Size (m) Lenght x Width x Hight - ca. 2,7 x 2 x 2,2 ca. weight (t) - 3,3 x 3,9t
