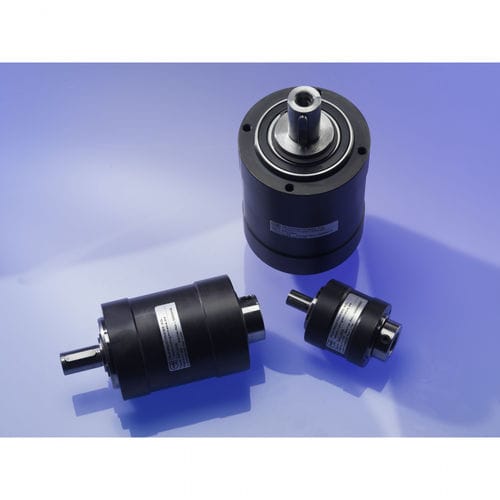

Planetary gear reducer RPL070
coaxial20 - 50 Nmsingle-stage

planetary gear reducer
planetary gear reducer
Add to favorites
Compare this product


Characteristics

Type
planetary
Shaft orientation
coaxial
Torque
20 - 50 Nm
Number of stages
single-stage, two-stage
Performance
precision, low-backlash, high-torque, high-efficiency, high-rigidity, maintenance-free
Applications
for industrial applications, for servo motors
Other characteristics
compact, rugged, for electric motors, for DC motors, for asynchronous motors
Rotational speed

Min.: 3,700 rpm (23,247.79 rad.min-1)

Max.: 6,000 rpm (37,699.11 rad.min-1)

Description

The very robust design of the RPL line allows for high torsional rigidity. The planetary gears are ideally applicable even at high radial or axial load. Thanks to the ratio of i=10 in the first planetary stage, the 2-stage version may reach transmissions of up to i=100. Gear housing Ø (mm): 70 Nominal output torque (Nm): 23-24 Acceleration torque (Nm): 46-48 Emergency stop torque (Nm): 69-72 Ratios: 1-st.: 3, 5, 7, 10 2-st.: 15, 25, 30, 35, 50, 70, 100 Circumferential backlash (arcmin): 1-st.: <=8 2-st.: <=12 Torsional stiffness [Nm/arcmin]: 2,80-3,30 For further information see our product detail page.
