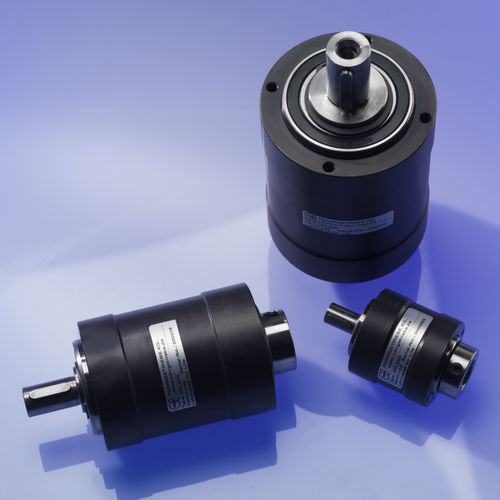

Planetary gear reducer RPL090

coaxial20 - 50 Nmsingle-stage

The very robust design of the RPL line allows for high torsional rigidity. The planetary gears are ideally applicable even at high radial or axial load. Thanks to the ratio of i=10 in the first planetary stage, the 2-stage version may reach transmissions of up to i=100. Gear housing Ø (mm): 90 Nominal output torque (Nm): 37-60 Acceleration torque (Nm): 74-120 Emergency stop torque (Nm): 111-180 Ratios: 1-st.: 3, 5, 7, 10 2-st.: 15, 25, 30, 35, 50, 70, 100 Circumferential backlash: 1-st.: <=8 arcmin 2-st.: <=11 arcmin For further information see our product detail page.
