Worm Gear SN15 / SN15H / SN15R / SN15HR

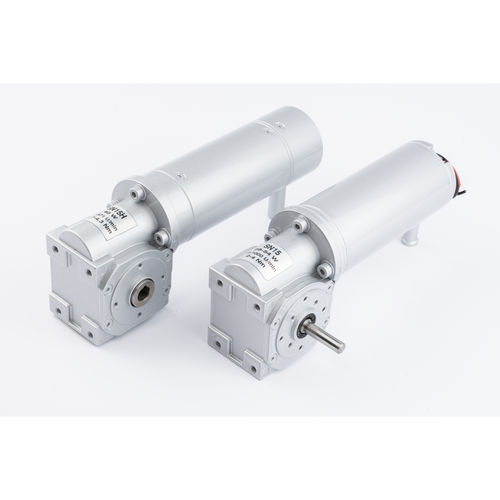

Compact single-stage gear with solid or hollow shaft combined with a 24V DC permanent magnet motor.
Different shaft positions are possible.
Stock motors have 28W or 54W output power and a speed of 3000 rpm.
The SN15R / SN15HR comes as a 24V-BLDC with integrated operating and control electronics, overload protection and a 4-Q Pi Controller - 40W output power and a speed of 4000 rpm.
Gearbox type: SN15 (solid-shaft) / SN15H (hollow-shaft)
Motor type: 24V DC permanent magnet
Mounting design: B3/B14
Transmission ratios: 3; 7; 10,5; 15; 21; 30; 40; 68
Protection class: IP40 (Other protection classes on request)
Additional data:
- Motor and gear in ball bearing
- worms hardened and ground
- Worm wheels from special bronze
For further information see product detail page.
