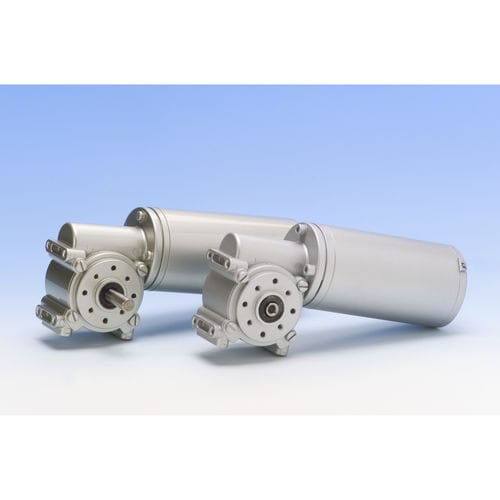

Worm Gear GP-SN18 / GP-SN18H
Compact single-stage worm geared motor with solid shaft.
Different shaft positions are possible.
Stock motors have 57W or 90W output power and a speed of 3000 rpm.
An additional version with 93W and a speed of 3300 rpm is also available.
The SN18 can be used wherever space is limited. It is widely used, for example, in door automation.
Gearbox type: SN18 solid-shaft
Motor type: 24V DC permanent magnet
Mounting design: B3/B14
Ratios SN18 Solid Shaft: 2,5; 5; 7; 10; 12; 15; 18; 20; 24; 30; 38; 50; 55; 75; 100;
Ratios SN18H Hollow shaft: 7; 15; 20; 30; 55;
Protection class: IP40 /IP54 (Other protection classes on request)
Additional data:
- Motor and gear in ball bearing
- worms hardened and ground
- Worm wheels from special bronze
For further information see product detail page.
