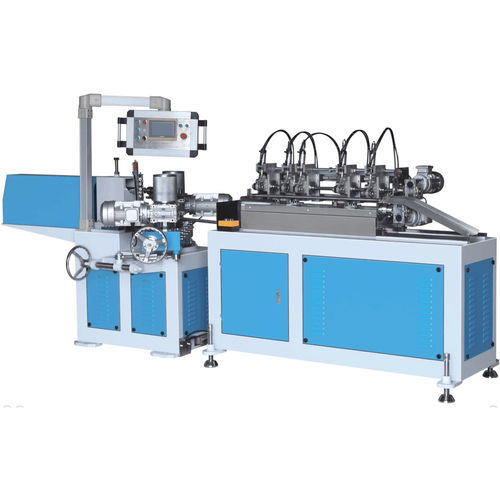

Drinking straw production machine

automatic

1. Adopt human-machine operation interface, more convenient for operation; 2. T Bar Paper reeling stand , Slitting rolls are easily placed into reel stand 3.Choose Single or double glue coating unit 4. Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven) 5. Multi-knife System in-line cutting unit controlled by encoder .，cutting final paper tube directly ， Servo motor control cutting system。 6. Option device : Full stainless steel body Specification Inner Diameter 5-10mm Paper Roll 2-3 Plies Thickness 0.25-1mm Cutting Length 120-820mm Hub Wheel Two Head 2 Way Of Fixing Shaft Clamp Production speed 10-40m/Min (20-30 degree summer 20-40m/min , 0-10 degree Winter 10-25m/min ) Way Of Cutting 58*38*1.5mm Circular Cutting Blade Way Of Gluing Single / Double Side Type Of Paper Reel Stand T-bar Blade 5 Groups Paper Reel Stand 6 Plies T-bar l Paper Reel Stand Glue System 3 plies independent glue tank Main Motor 1.5kwx2 CHINA XINLING Inverter 3.7kw CHINA RIHONG Servo Motor 0.85kw JAPAN YASKAWA Operator 1-2 Persons Main Part Dimension 3250*1100*1450mm Overall Dimension 7200*4800*1500mm Weight 1300kgs
